Overview
Perfect fitment. The Stage Series Backlit Ditch Light Kit compatible with Toyota 4Runner 2010-2024 allows you to easily mount two SS3 or SSC2 Backlit Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare and will not interfere with raising or lowering the hood.
Backlight Functionality. Both the SS3 and SSC2 pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light along with the main beam. The backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight use the included harness to tap your desired vehicle function.
Built to last. The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction you also won't experience any vibration or bouncing while driving.
Focused. Optics like reflectors or simple lenses lose light internally and to glare. However the custom-engineered TIR optic in the SS3 and SSC2 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
- Advanced TIR optics provide high efficiency and focus
- High-intensity automotive-type LEDs
- Pin-fin heatsink design
- Integrated Deutsch-style connector
- Durable powdercoated aluminum construction
Information:

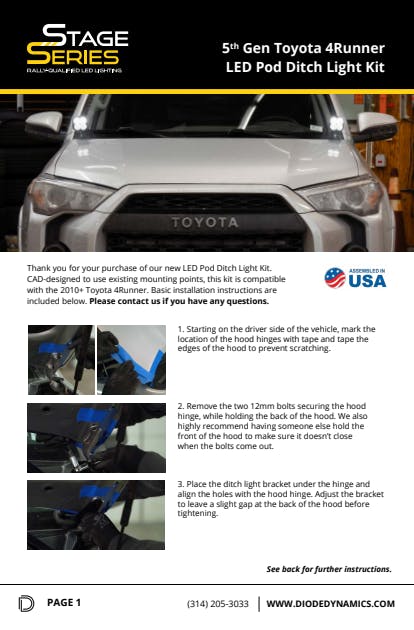

Included in the box: Two (2) SS3 or SSC2 Standard LED Pods. Two (2) Ditch light brackets. Two (2) SS3 or SSC2 Mounting brackets. One (1) Heavy Duty Dual Output 4-pin Wiring Harness. Mounting hardware. Mounting guide.Application Summary:
| Year | Make/Model |
|---|---|
| 2010-2024 | Toyota 4Runner |
| Attributes | |
| Add-On | N/A, N/A |
| Base Color | Black |
| Base Material | Steel, Steel |
| Bolt Grade | High, High |
| Bolt Thread Type | Medium, Medium |
| California Proposition 65 | Yes |
| Color Temp | 6000K, 6000K |
| Compliance Rating | SAE J575 Durability Test, SAE J575 Durability Test |
| Country of Origin (Primary) | US |
| Drilling Required | No, No |
| Hazardous Material Code | N |
| Housing Color | Black, Black |
| Housing Finish | Powdercoat, Powdercoat |
| Input Power (watts) | 36, 36 |
| Intensity (lux) | 35 100 cd, 35 100 cd |
| Intrusion Rating | IP69K Waterproof, High Pressure, IP69K Waterproof, High Pressure |
| Life Cycle Status Code | Available to Order |
| Light Beam Pattern | Combination |
| Measured Output (lumens) | 3 000 lm, 3 000 lm |
| Mounting Hardware Included | Yes, Yes |
| Operating Temperature | -40C to 85C (-40F to 185F), -40C to 85C (-40F to 185F) |
| Operating Voltage | 9-16V, 9-16V |
| SDR Required Flag | N |
| Sheen Level | Matte, Matte |
| Universal Or Specific Fit | Specific, Specific |
| Warranty Time | 8 |
| Weather Resistant | Yes, Yes |
| Wire Quantity | 2, 2 |
| GTIN | 00691026129143 |
